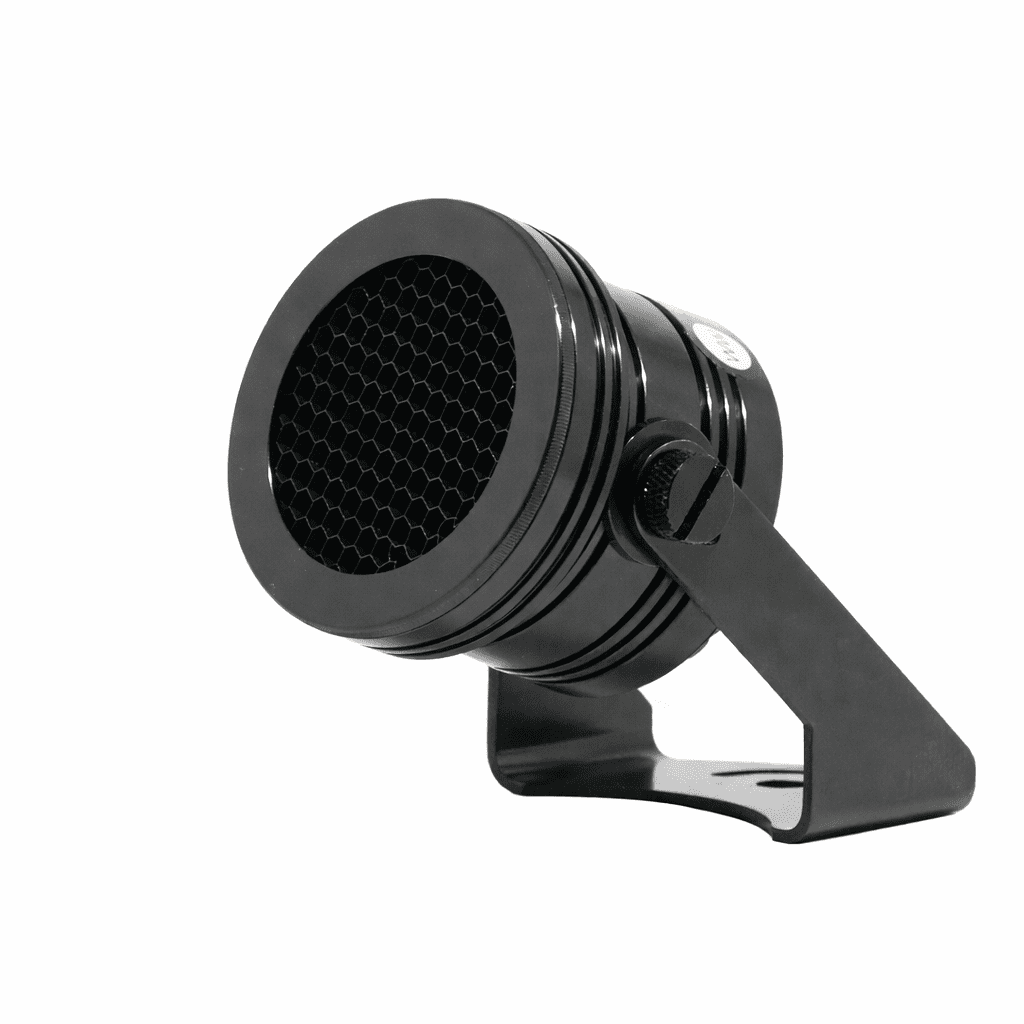

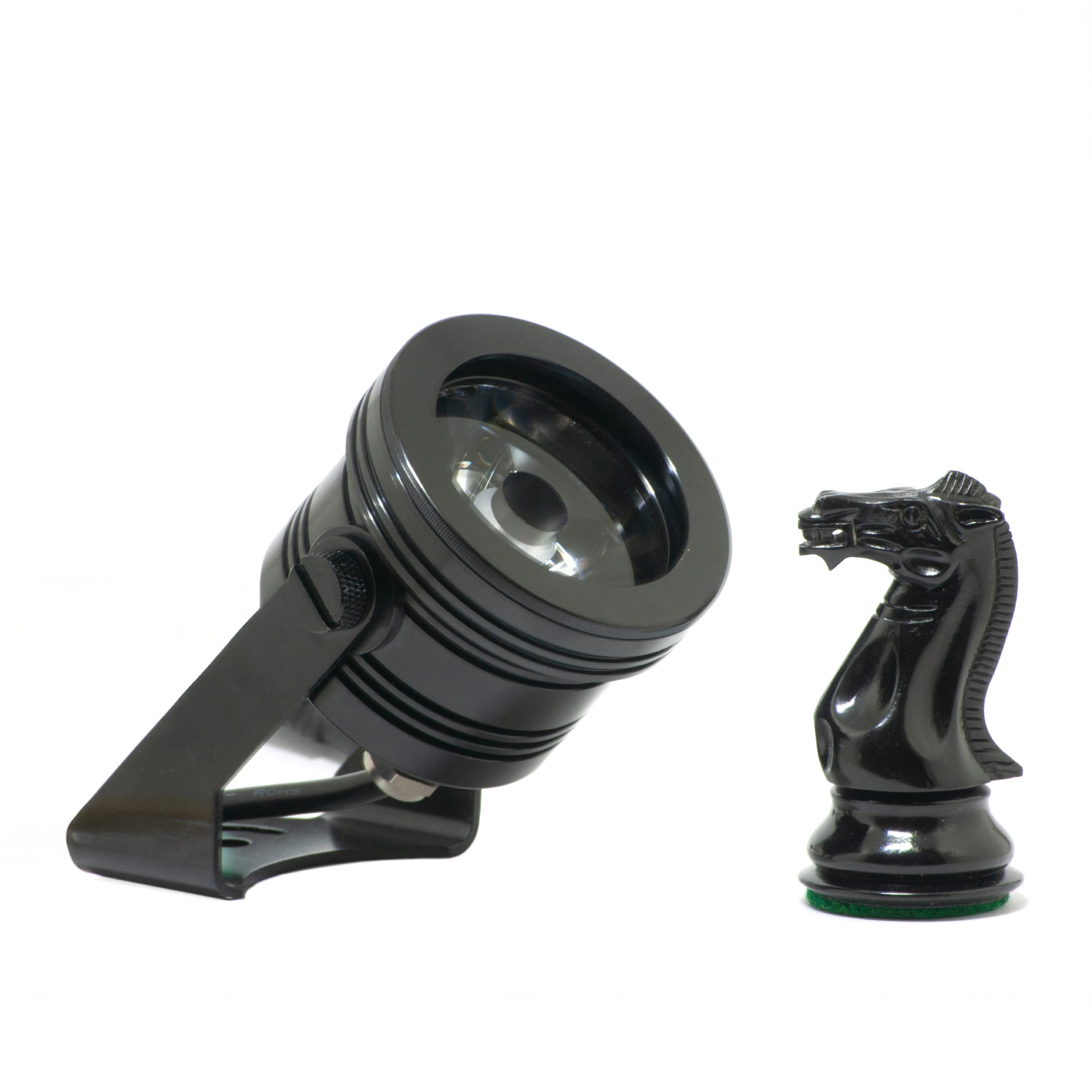

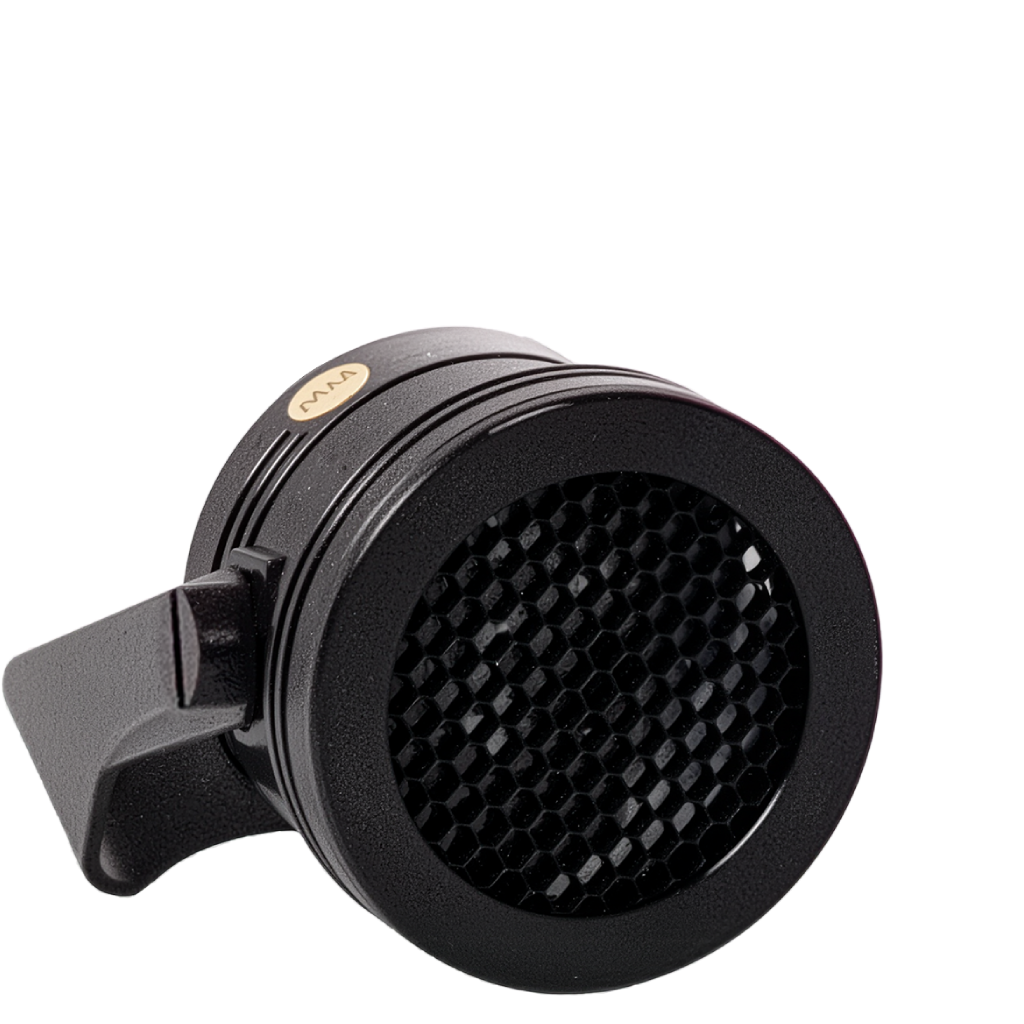

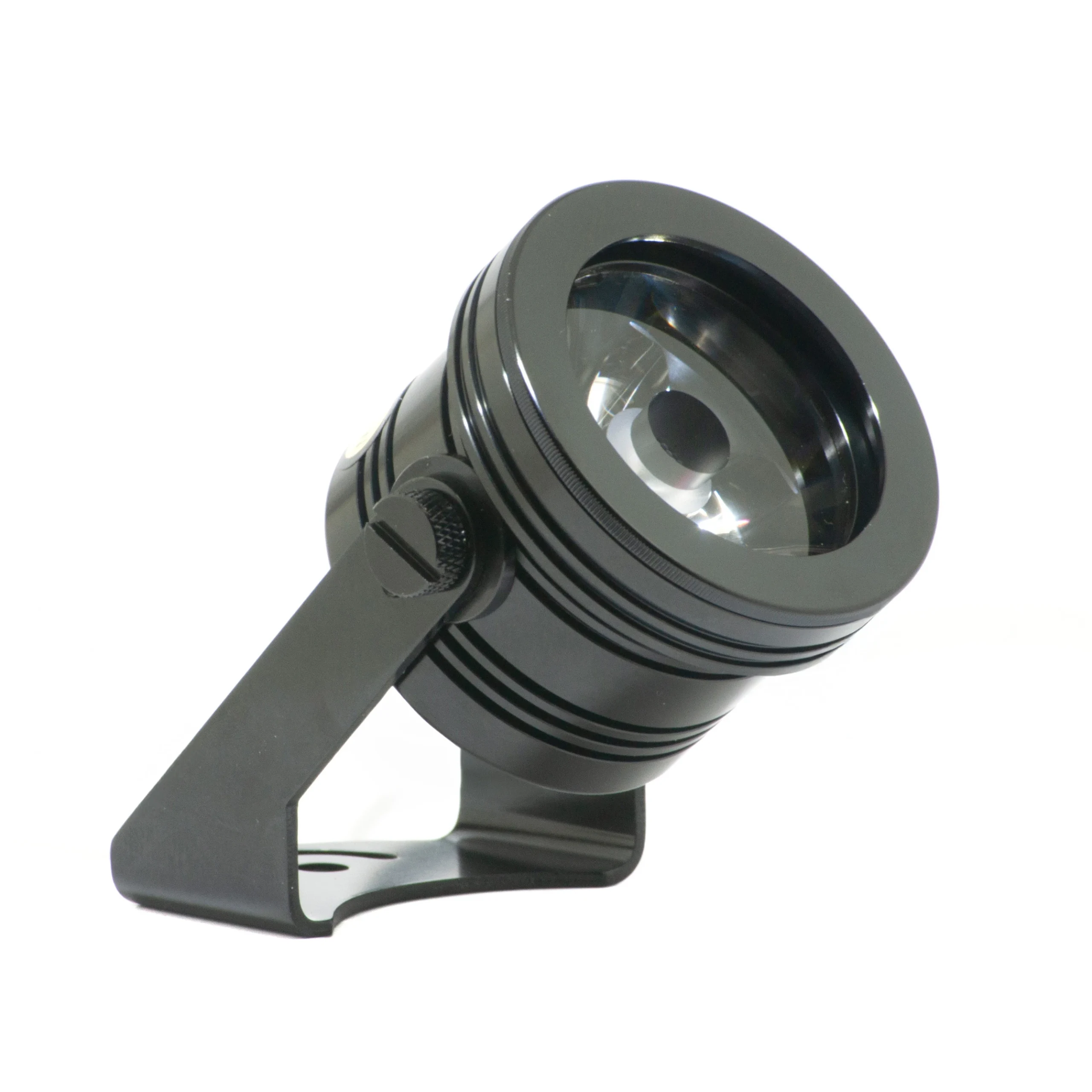

Gantom One DMX
4W DMX Pinspot
APPLICATIONS
- Centerpiece illumination
- Event lighting
- Photography lighting
- Portable lighting
- DJ and performance lighting
- Display case lighting
Description
Compact, powerful, versatile… this is the One. Gantom listened to some of the most skilled lighting professionals in the industry and based on their input designed the One; the pinspot to rule all pinspots. Compared to a traditional 30W pinspot the One runs cooler and safer on far less power, has much cleaner optics, and can even be run on batteries. The Gantom One includes an integrated, easy to use magnetic accessory mounting system. Choose from an almost infinite array of color filters and diffusers to achieve any effect you desire, then install the perfect option without tools or hassle.
Product Details
GC255 |
Gantom One DMX – Cool White (6500K) |
GC256 |
Gantom One DMX – Warm White (3000K) |
GC257 |
Gantom One DMX – Ultraviolet (395nm) |
Material |
Black Anodized Aluminum |
IP rating |
IP65 |
Weight |
308 grams (10.86 oz) |
Voltage | 12–24V DC |
Power | 4.5W |
Dimming | DMX |
Connector | RJ45 |
Ambient operating temperature |
0–50° C (32–122° F) |
Cooling method |
Passive |
USA / Canada |
UL |
Europe |
CE, RoHS |
Channel footprint |
4 |
Addressing |
DarkBox Programmer |
Lowest dimming |
0.05% |
CH. 1 |
Intensity (0%–100%) |
Cool White |
6500K |
Warm White |
3000K |
Ultraviolet |
395nm |
Fixture |
2 Years |
Gantom One DMX FEATURES
-
Exceeds output of traditional 30W pinspots while using only 4W
-
Ultra narrow beam optics for optimal long distance throw
-
Accessory retainer ring for filters and diffusers
-
Low voltage and minimal heat for improved safety over incandescent sources
-
Internal constant current driver gives highly efficient and consistent output
-
Integrated DMX receiver allows theatrical style dimming control
-
DMX address or standalone state configured using the Gantom DarkBox Programmer
-
Easy installation and reconfiguration
-
Dual polarity input
-
Almost no UV or IR emitted
-
Minimal maintenance required with over 50,000 hour lamp life
-
IP65 rated for indoor and outdoor use with occasional liquid exposure
optional Components
60mm
CF Fixture Accessory Pack

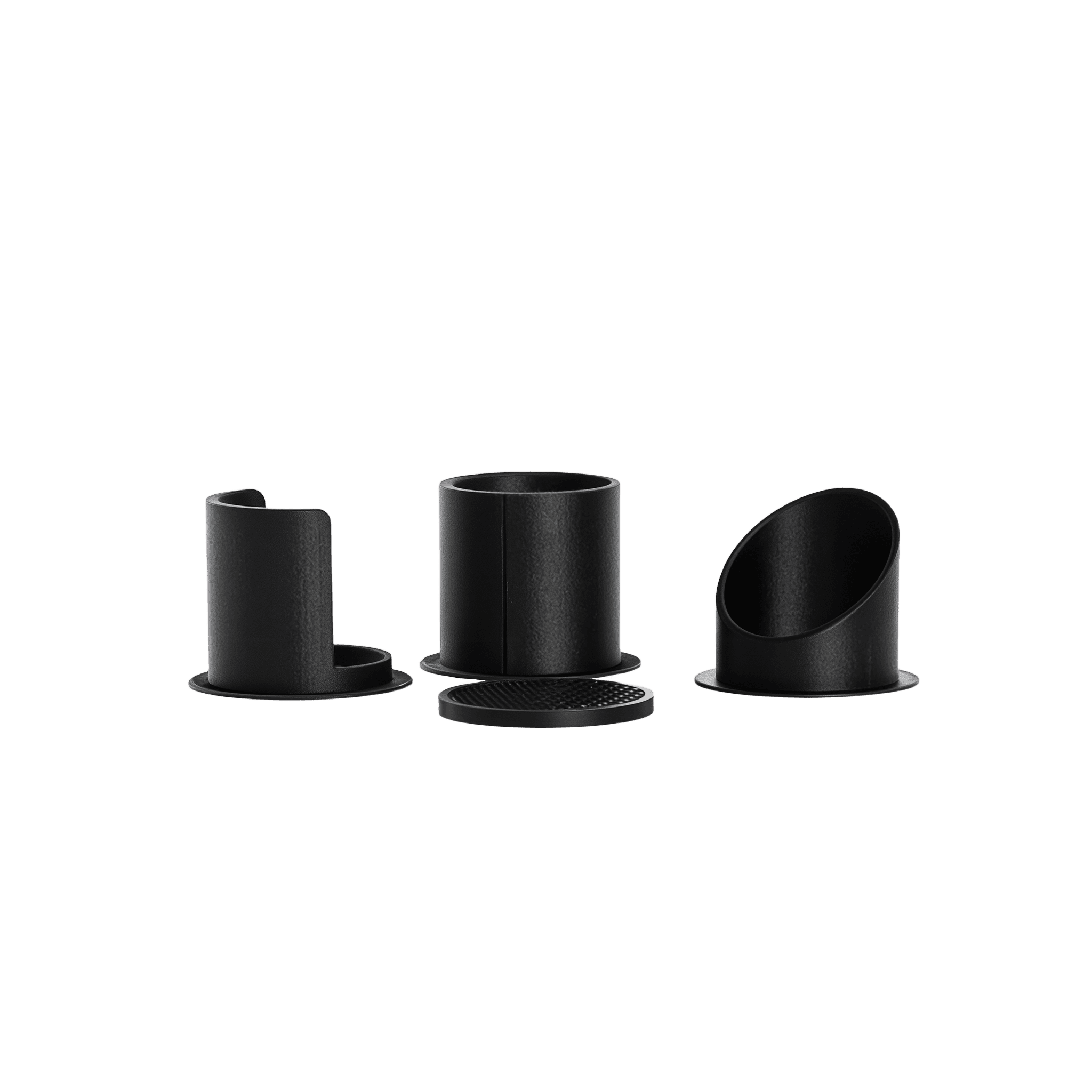

Beam Control Accessory Pack for Gantom Seven, One and One Up

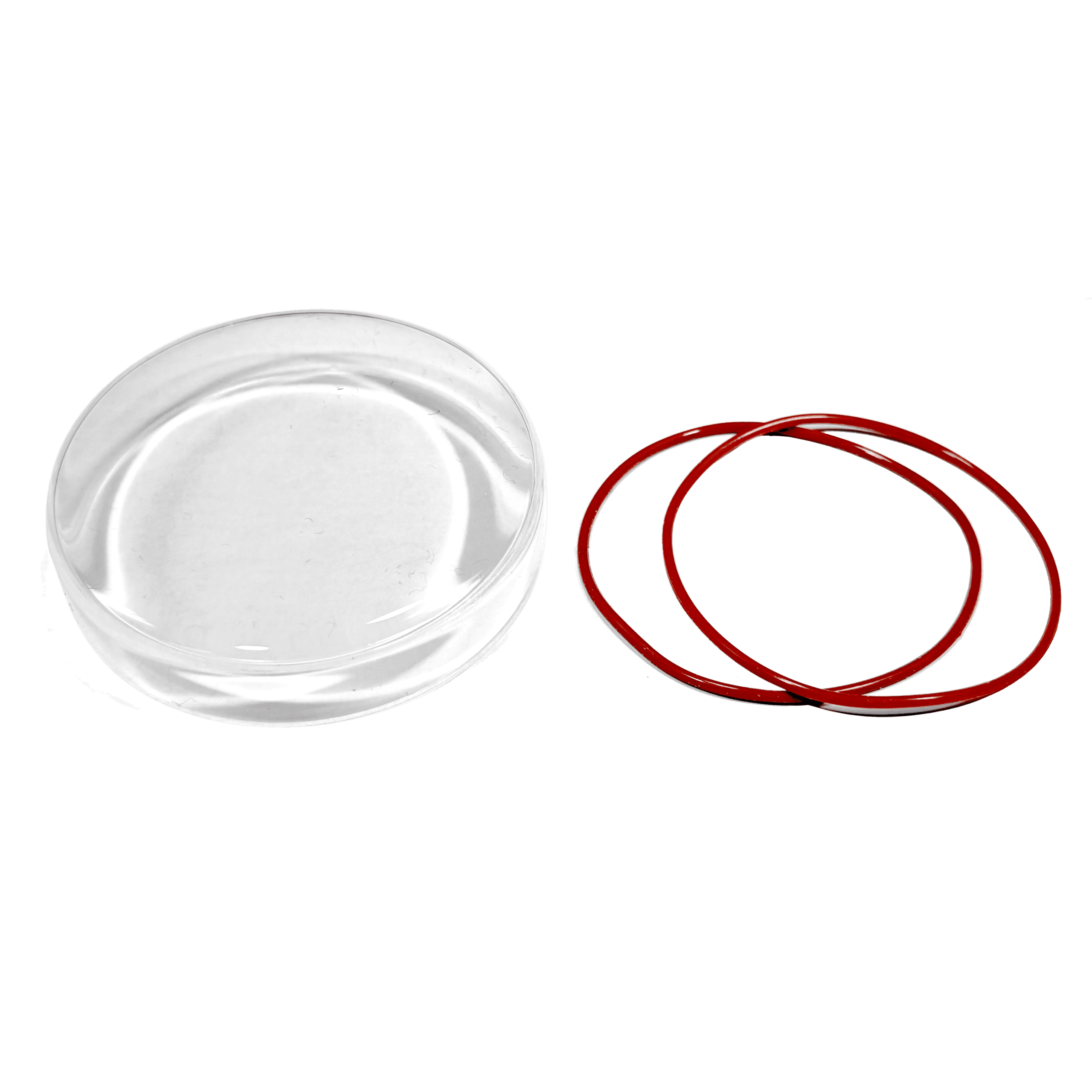

60mm Aluminum Fixture Accessories

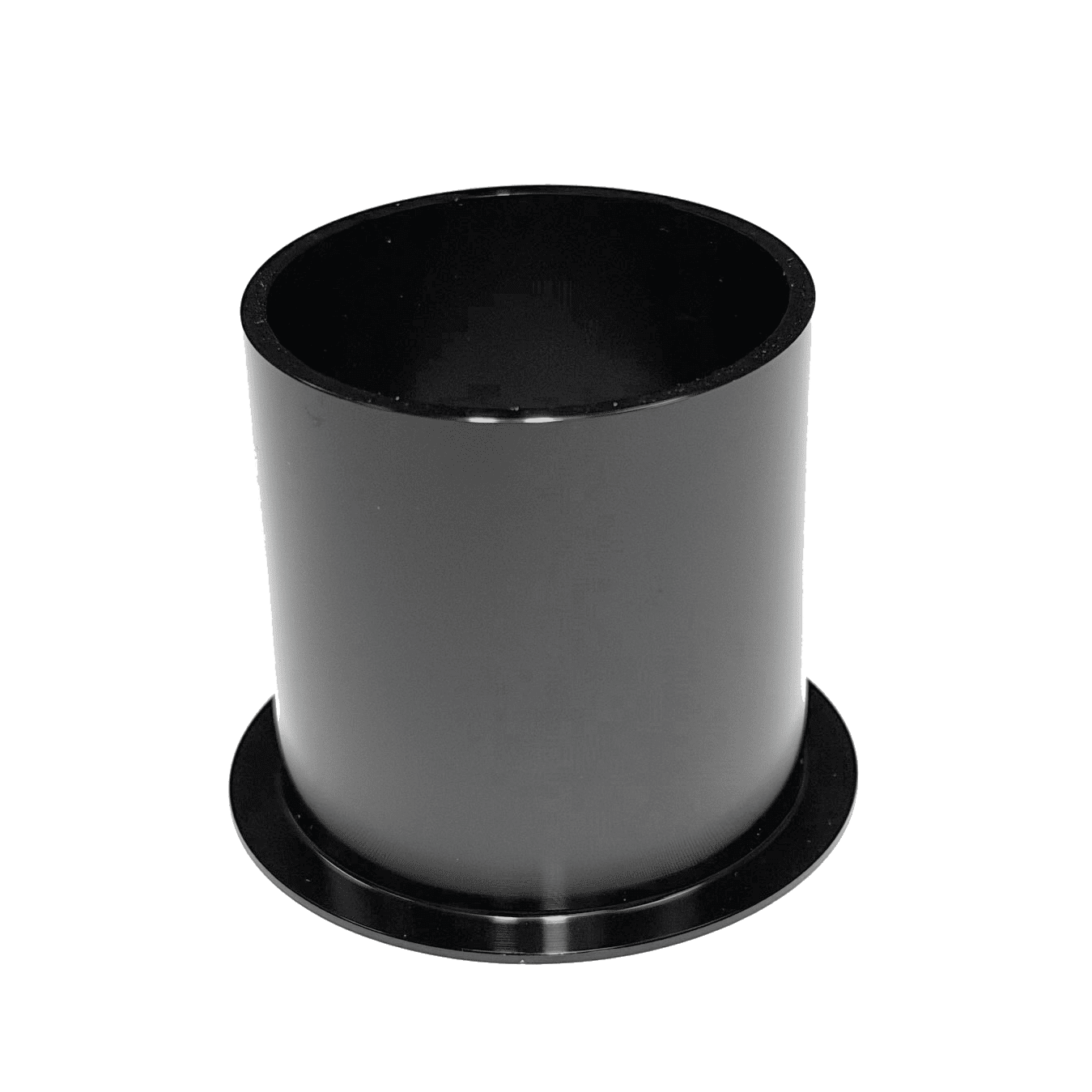

Beam Control Accessories for Gantom One, One DMX, One Up and 7 fixtures
